PRODUCT
>>
DC-BLOCK(DC-STOP)
Item Name:
DC-Stop Protector
Insertion loss:
≤ 1.10
Model:
PT-DC-18GSC
V.S.W.R:
≤ 1.25
Class:
DC-Stop Protector
Impedance:
50 Ω
Frequency:
DC-18000MHz
Connector:
SMA-M/F
Pass
Power:
2
W
Temperature:
-55
℃
- +
100
℃
Item Name:
DC-Stop Protector
Insertion loss:
≤
0.80
Model:
PT-DC-3GNC
V.S.W.R:
≤ 1.25
Class:
DC-Stop Protector
Impedance:
50 Ω
Frequency:
DC-3000MHz
Connector:
N-M/F
Pass
Power:
100
W
Temperature:
-55
℃
- +
80
℃
Item Name:
DC-Stop Protector
Insertion loss:
≤
0.30
Model:
PT-DC-3GNJ
V.S.W.R:
≤ 1.25
Class:
DC-Stop Protector
Impedance:
50 Ω
Frequency:
DC-3000MHz
Connector:
N-M/F
Pass
Power:
100
W
Temperature:
-40
℃
- +
80
℃
Item Name:
Low PIM DC-Stop
Insertion loss:
≤
0.10
Model:
PDS-727-200-NLP
V.S.W.R:
≤ 1.20
Class:
DC-Stop Protector
PIM:
≤
-150dBc@2X20W
Frequency:
DC-3000MHz
Connector:
N-M/F(50 Ω)
Pass
Power:
200
W
Temperature:
-55
℃
- +
80
℃

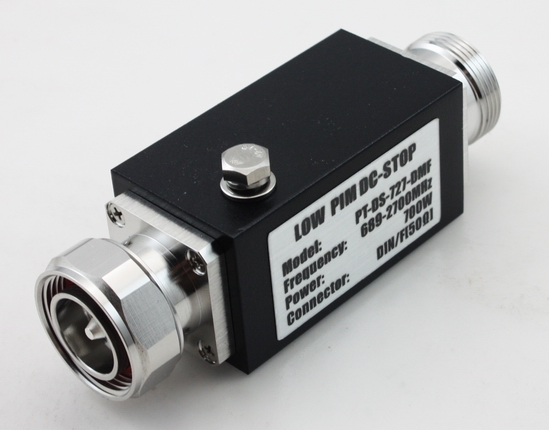

Item Name:
Low PIM DC-Stop
Insertion loss:
≤
0.10
Model:
PDS-727-700-D
LP
V.S.W.R:
≤ 1.20
Class:
DC-Stop Protector
PIM:
≤
-150dBc@2X20W
Frequency:
DC-3000MHz
Connector:
DIN/M-DIN/F(50 Ω)
Pass
Power:
700
W
Temperature:
-40
℃
- +
80
℃
DC-Block(DC-Stop)
