>> JUMPER |
|
 |
|
|
|
|
1/4",3/8",5/8",1/2",7/8"
Foam Dielectric Feeder Cable Jumpers: |
|
Structure Dimension: |
|
No.
|
Description
|
No. |
Description
|
|
A
|
N/Male - N/Male |
L
|
7/16(DIN)/Male -7/16(DIN)/Female |
|
B
|
N/Male - N/Female |
M
|
7/16(DIN)/Female -
7/16(DIN)/Female |
|
C
|
N/Female - N/Female |
N |
N/Male(RA) - N/Male(RA)
|
|
D
|
N/Male -
7/16(DIN)/Male |
O |
N/Male(RA) - N/Female
|
|
E
|
N/Male -
7/16(DIN)/Female |
P |
N/Male - 7/16(DIN)/Male(RA) |
|
F
|
N/Female -
7/16(DIN)/Male |
Q |
7/16(DIN)/Male(RA)-7/16(DIN)/Male(RA) |
|
G
|
7/16(DIN)/Male-7/16(DIN)/Male |
R |
7/16(DIN)/Male(RA)-7/16(DIN)/Female |
|
H |
N/Male -
4.3-10/Male |
S |
7/16(DIN)/Male
- 4.3-10/Male |
|
I |
N/Male -
4.3-10/Female |
T |
7/16(DIN)/Male
- 4.3-10/Female |
|
J |
N/Female -
4.3-10/Male |
U |
7/16(DIN)/Female
- 4.3-10/Male |
|
K |
N/Female -
4.3-10/Female |
V |
7/16(DIN)/Female
- 4.3-10/Female |
|
|
|
 |
 |
|
Solder Type
Jumper |
Clamp Type Jumper |
|
|
|
Item
|
Specification |
|
Frequency
Range |
DC~7.5GHz
|
|
Impedance
|
50Ω
|
|
VSWR
|
≤1.08
(0-1.0G) |
|
≤1.10
(1.7-2.7G)
|
|
≤1.13
(2.7-3.0G) |
|
PIM
|
N |
≤ -160dBc@2X43dBm
|
|
7/16 DIN
|
|
4.1/9.5 MINI
DIN
|
|
4.3/10 MINI
DIN
|
|
Insulation
Resistance
|
≥5000MΩ
|
|
Dielectric Withstanding Voltage |
2500
rms (DC) |
|
Insertion Loss |
≤0.21XL+0.2dB (0.8-2.7G) |
|
Waterproof |
IP68 24hr,1m,20℃ |
|
Durability |
500 Cycles |
|
Connector |
N,7/16(DIN),4.1/9.5,4.3/10 |
|
Operating
Temperature Range
|
-40~+85℃
|
|
Humidity
|
≤95%
|
|
Air
pressure
|
70~106Kpa
|
|
|
 |
The cable length can customize with
0.5m,1m,1.5m,1.5m,2m,2.5m,3m,4m,5m,7m,10m,15,30,40,50,100m.
The cable can customize with 1/4",1/4"SF,3/8",3/8"SF,1/2",1/2"SF Feeder Cable. |
 |
|

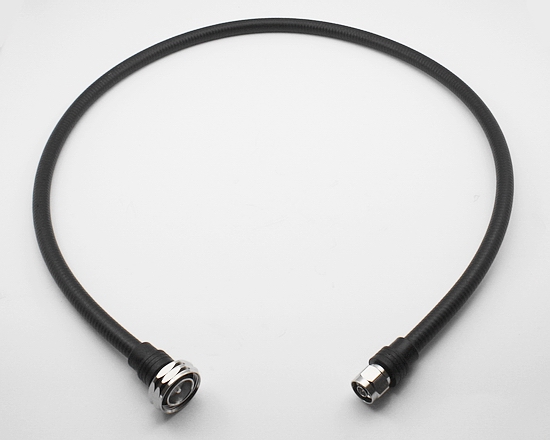

Solder Type 1/2"
Superflexible Jumper |
|
|
|
|
|
Waterproof
1/4",3/8",5/8",1/2",7/8"
Foam Dielectric Feeder Cable Jumpers: |
|
Structure Dimension: |
|
No.
|
Description
|
No. |
Description
|
|
A
|
N/Male - N/Male |
L
|
7/16(DIN)/Male -7/16(DIN)/Female |
|
B
|
N/Male - N/Female |
M
|
7/16(DIN)/Female -
7/16(DIN)/Female |
|
C
|
N/Female - N/Female |
N |
N/Male(RA) - N/Male(RA)
|
|
D
|
N/Male -
7/16(DIN)/Male |
O |
N/Male(RA) - N/Female
|
|
E
|
N/Male -
7/16(DIN)/Female |
P |
N/Male - 7/16(DIN)/Male(RA) |
|
F
|
N/Female -
7/16(DIN)/Male |
Q |
7/16(DIN)/Male(RA)-7/16(DIN)/Male(RA) |
|
G
|
7/16(DIN)/Male-7/16(DIN)/Male |
R |
7/16(DIN)/Male(RA)-7/16(DIN)/Female |
|
H |
N/Male -
4.3-10/Male |
S |
7/16(DIN)/Male
- 4.3-10/Male |
|
I |
N/Male -
4.3-10/Female |
T |
7/16(DIN)/Male
- 4.3-10/Female |
|
J |
N/Female -
4.3-10/Male |
U |
7/16(DIN)/Female
- 4.3-10/Male |
|
K |
N/Female -
4.3-10/Female |
V |
7/16(DIN)/Female
- 4.3-10/Female |
|
|
|
|
Item
|
Specification |
|
Frequency
Range |
DC~7.5GHz
|
|
Impedance
|
50Ω
|
|
VSWR
|
≤1.08
(0-1.0G) |
|
≤1.10
(1.7-2.7G)
|
|
≤1.13
(2.7-3.0G) |
|
PIM
|
N |
≤ -160dBc@2X43dBm
|
|
7/16 DIN
|
|
4.1/9.5 MINI
DIN
|
|
4.3/10 MINI
DIN
|
|
Insulation
Resistance
|
≥5000MΩ
|
|
Dielectric Withstanding Voltage |
2500
rms (DC) |
|
Insertion Loss |
≤0.21XL+0.2dB (0.8-2.7G) |
|
Waterproof |
IP68 24hr,1m,20℃ |
|
Durability |
500 Cycles |
|
Connector |
N,7/16(DIN),4.1/9.5,4.3/10 |
|
Operating
Temperature Range
|
-40~+85℃
|
|
Humidity
|
≤95%
|
|
Air
pressure
|
70~106Kpa
|
|
|
|
|
The cable length can customize with
0.5m,1m,1.5m,1.5m,2m,2.5m,3m,4m,5m,7m,10m,15,30,40,50,100m.
The cable can customize with 1/4",1/4"SF,3/8",3/8"SF,1/2",1/2"SF Feeder Cable. |
 |
|

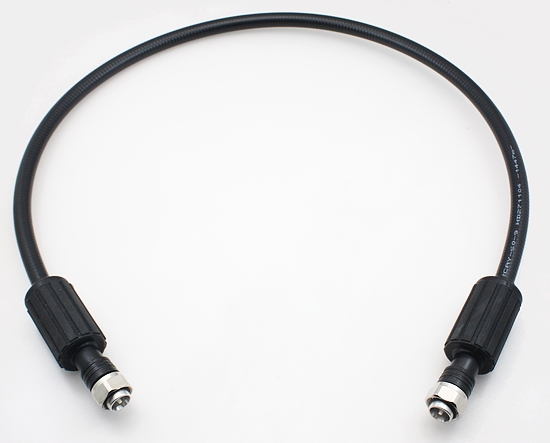

Waterproof Solder
Type 1/2" Superflexible Jumper |
|
|
|
|
|
|
