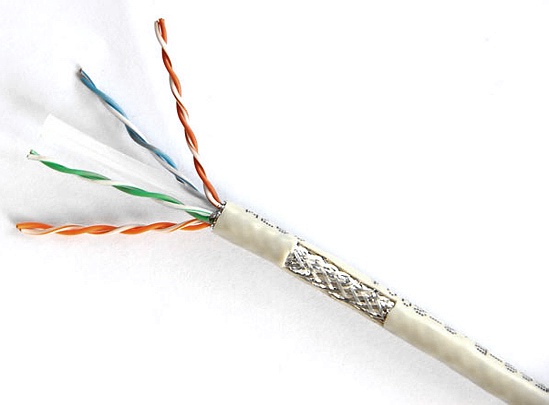

CAT6E Cable Constructiln: |
|
Part No. |
Designation |
AWG size |
Conductor |
Insulation |
Sheath |
Weight |
| 392001 |
FTP CAT.6e |
4×2×24AWG |
0.58 |
1.04 |
6.4 |
45.7 |
|
|
Electrical Characteristics: |
Frequency
MHz |
Attenuation Max |
Crosstalk
NEXT |
Crosstalk |
Power Sum |
Impedance |
Return Loss |
|
db/100m |
db/100m |
db/100m |
db/100m |
Ohm |
db/100m |
|
Max. |
Nom. |
Min. |
Nom. |
Min. |
Nom. |
Min. |
Nom. |
Ω |
Min. |
Nom. |
| 1 |
1.8 |
2.0 |
87.1 |
65 |
84.5
|
64 |
75.5 |
61 |
100±10 |
29.0 |
17.0 |
| 4 |
3.7 |
4.1 |
76.9 |
56 |
73.2 |
52 |
59.4 |
49 |
100±10 |
34.2 |
18.8 |
| 10 |
6.0 |
6.5 |
74.1 |
50 |
68.3 |
44 |
51.1 |
41 |
100±10 |
34.0 |
19.7 |
| 16 |
7.6 |
8.2 |
72.5 |
47 |
50.6 |
40 |
45.7 |
37 |
100±10 |
34.7 |
20.0 |
| 20 |
8.5 |
9.2 |
64.5 |
46 |
48.5 |
38 |
41.8 |
35 |
100±10 |
32.5 |
20.0 |
| 31.25 |
10.6 |
11.7 |
61.3 |
43 |
46.7 |
34 |
37.5 |
31 |
100±10 |
31.3 |
18.6 |
| 62.50 |
15.6 |
17.0 |
58.4 |
38 |
43.9 |
28 |
334.6 |
25 |
100±10 |
30.4 |
16.5 |
| 100 |
19.9 |
22.0 |
49.8 |
35 |
38.1 |
24 |
30.4 |
21 |
100±15 |
29.3 |
15.1 |
|
|
|
 |
|
