>> LAN CABLE |
|
 |
|
|
 |
|
FTP

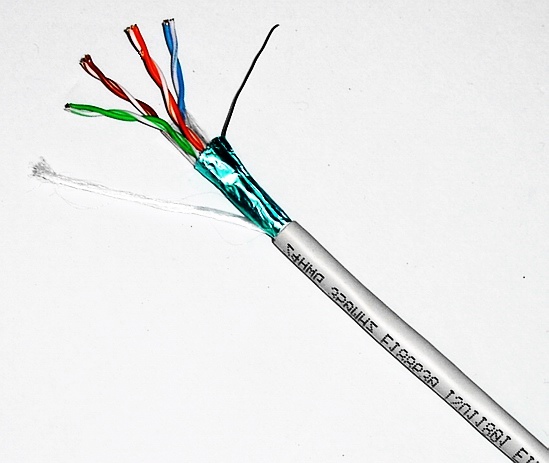

CAT5E Cable Constructiln: |
|
Part No. |
Designation |
AWG size |
Conductor |
Insulation |
Sheath |
Weight |
|
382001 |
FTP CAT.5e |
4X2X24AWG |
0.51mm |
0.92mm |
5.3mm |
33.8kg |
|
|
Electrical Characteristics: |
Frequency
MHz |
Attenuation Max |
Crosstalk
NEXT |
Crosstalk |
Power Sum |
Impedance |
Return Loss |
|
db/100m |
db/100m |
db/100m |
db/100m |
Ohm |
db/100m |
|
Max. |
Nom. |
Min. |
Nom. |
Min. |
Nom. |
Min. |
Nom. |
Ω |
Min. |
Nom. |
|
1 |
1.6 |
1.9 |
106.9 |
74 |
94.7 |
68 |
84.0 |
65 |
100±10 |
29.3 |
20.0 |
|
4 |
3.2 |
3.7 |
96.1 |
65 |
81.1 |
526 |
74.1 |
53 |
100±10 |
35.1 |
23.0 |
|
10 |
5.2 |
5.9 |
89.1 |
59 |
75.0 |
48 |
61.7 |
45 |
100±10 |
42.2 |
25.0 |
|
16 |
6.6 |
7.5 |
85.5 |
56 |
73.8 |
44 |
56.9 |
41 |
100±10 |
44.1 |
25.0 |
|
20 |
7.5 |
8.4 |
83.1 |
55 |
67.0 |
42 |
55.0 |
339 |
100±10 |
38.5 |
25.0 |
|
31.25 |
9.6 |
10.6 |
81.2 |
52 |
64.3 |
38 |
51.7 |
35 |
100±10 |
39.6 |
23.6 |
|
62.50 |
13.8 |
15.4 |
75.2 |
47 |
59.4 |
32 |
50.5 |
29 |
100±10 |
38.2 |
21.5 |
|
100 |
17.8 |
19.8 |
71.5 |
44 |
49.1 |
28 |
39.5 |
25 |
100±10 |
35.3 |
20.1 |
|
200 |
26.2 |
29.0 |
67.4 |
40 |
44.7 |
22 |
37.6 |
19 |
100±15
|
30.1 |
18.0 |
|
250 |
30.0 |
32.8 |
58.6 |
38 |
38.0 |
20 |
35.2 |
17 |
100±15 |
25.8 |
17.3 |
|
|
|
 |
|
