AISG to AISG Cable: |
The AISG
control cables are used to feed data and power from the
controller to the RET (remote electrical tilt) system
components.
These cables are available in various lengths and are
terminated with male and female connectors which allow them
to be linked together to meet a required length.
GELVO recommends grounding the RET control cable at the top
of the tower using a junction box. A lightning protection
unit should be used at the bottom of the tower to ground the
RET control cable. |
|
Structure Dimension: |
No.
|
Model
|
Cable Length |
Remark
|
A
|
AISG/M-AISG/F-0.5M |
0.5m |
AISG
DIN Male to AISG DIN Female |
B
|
AISG/M-AISG/F-1.0M |
1.0m |
AISG
DIN Male to AISG DIN Female |
C |
AISG/M-AISG/F-3.0M |
3.0m |
AISG
DIN Male to AISG DIN Female |
D |
AISG/M-AISG/F-5.0M |
5.0m |
AISG
DIN Male to AISG DIN Female |
E |
AISG/M-AISG/F-6.0M |
6.0m |
AISG
DIN Male to AISG DIN Female |
F |
AISG/M-AISG/F-10.0M |
10.0m |
AISG
DIN Male to AISG DIN Female |
G |
AISG/M-AISG/F-15.0M |
15.0m |
AISG
DIN Male to AISG DIN Female |
H |
AISG/M-AISG/F-30.0M |
30.0m |
AISG
DIN Male to AISG DIN Female |
I
|
AISG/M-AISG/F-50.0M |
50.0m |
AISG
DIN Male to AISG DIN Female |
J
|
AISG/M-AISG/F-60.0M |
60.0m |
AISG
DIN Male to AISG DIN Female |
K
|
AISG/M-AISG/F-70.0M |
70.0m |
AISG
DIN Male to AISG DIN Female |
L
|
AISG/M-AISG/F-80.0M |
80.0m |
AISG
DIN Male to AISG DIN Female |
M |
AISG/M-AISG/F-90.0M |
90.0m |
AISG
DIN Male to AISG DIN Female |
N
|
AISG/M-AISG/F-100.0M |
100.0m |
AISG
DIN Male to AISG DIN Female |
|
Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V
Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black
Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test
Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to
+158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test
Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test
Condition B
Ingress Protection Test Method IEC 60529:2001, IP67
Dimensions:
Length 1.0 m~100m
Diameter Over Jacket 8.0 mm
|
|
|
|
|
AISG to AISG
CABLE |
|

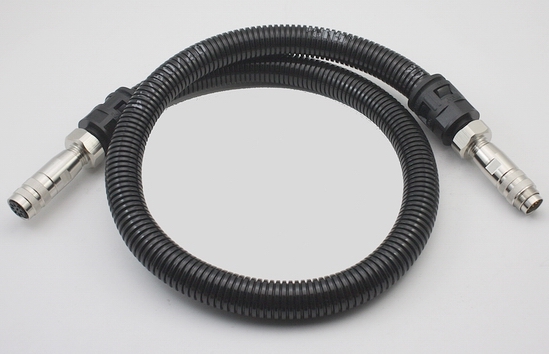

Bird Pecking Prevention
AISG to
AISG Cable: |
The brid
pecking prevention AISG control cables are used to feed data
and power from the controller to the RET (remote electrical
tilt) system components,it can prevention the cable for the
bird pecking damage.
These cables are available in various lengths and are
terminated with male and female connectors which allow them
to be linked together to meet a required length.
GELVO recommends grounding the RET control cable at the top
of the tower using a junction box. A lightning protection
unit should be used at the bottom of the tower to ground the
RET control cable. |
|
Structure Dimension: |
No.
|
Model
|
Cable Length |
Remark
|
A
|
AISG/M-AISG/F-0.5M(BP) |
0.5m |
AISG
DIN Male to AISG DIN Female |
B
|
AISG/M-AISG/F-1.0M(BP) |
1.0m |
AISG
DIN Male to AISG DIN Female |
C |
AISG/M-AISG/F-3.0M(BP) |
3.0m |
AISG
DIN Male to AISG DIN Female |
D |
AISG/M-AISG/F-5.0M(BP) |
5.0m |
AISG
DIN Male to AISG DIN Female |
E |
AISG/M-AISG/F-6.0M(BP) |
6.0m |
AISG
DIN Male to AISG DIN Female |
F |
AISG/M-AISG/F-10.0M(BP) |
10.0m |
AISG
DIN Male to AISG DIN Female |
G |
AISG/M-AISG/F-15.0M(BP) |
15.0m |
AISG
DIN Male to AISG DIN Female |
H |
AISG/M-AISG/F-30.0M(BP) |
30.0m |
AISG
DIN Male to AISG DIN Female |
I
|
AISG/M-AISG/F-50.0M(BP) |
50.0m |
AISG
DIN Male to AISG DIN Female |
J
|
AISG/M-AISG/F-60.0M(BP) |
60.0m |
AISG
DIN Male to AISG DIN Female |
K
|
AISG/M-AISG/F-70.0M(BP) |
70.0m |
AISG
DIN Male to AISG DIN Female |
L
|
AISG/M-AISG/F-80.0M(BP) |
80.0m |
AISG
DIN Male to AISG DIN Female |
M |
AISG/M-AISG/F-90.0M(BP) |
90.0m |
AISG
DIN Male to AISG DIN Female |
N
|
AISG/M-AISG/F-100.0M(BP) |
100.0m |
AISG
DIN Male to AISG DIN Female |
|
Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V
Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black
Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test
Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to
+158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test
Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test
Condition B
Ingress Protection Test Method IEC 60529:2001, IP67
Dimensions:
Length 1.0 m~100m
Diameter Over Jacket 8.0 mm
|
|
|
|
|
Bird Pecking Prevention
AISG to
AISG Cable |
|
OVER
MOLD
AISG to AISG Cable: |
The AISG
control cables are used to feed data and power from the
controller to the RET (remote electrical tilt) system
components.
These cables are available in various lengths and are
terminated with male and female connectors which allow them
to be linked together to meet a required length.
GELVO recommends grounding the RET control cable at the top
of the tower using a junction box. A lightning protection
unit should be used at the bottom of the tower to ground the
RET control cable. |
|
Structure Dimension: |
No.
|
Model
|
Cable Length |
Remark
|
A
|
AISG/M-AISG/F-0.5M |
0.5m |
AISG
DIN Male to AISG DIN Female |
B
|
AISG/M-AISG/F-1.0M |
1.0m |
AISG
DIN Male to AISG DIN Female |
C |
AISG/M-AISG/F-3.0M |
3.0m |
AISG
DIN Male to AISG DIN Female |
D |
AISG/M-AISG/F-5.0M |
5.0m |
AISG
DIN Male to AISG DIN Female |
E |
AISG/M-AISG/F-6.0M |
6.0m |
AISG
DIN Male to AISG DIN Female |
F |
AISG/M-AISG/F-10.0M |
10.0m |
AISG
DIN Male to AISG DIN Female |
G |
AISG/M-AISG/F-15.0M |
15.0m |
AISG
DIN Male to AISG DIN Female |
H |
AISG/M-AISG/F-30.0M |
30.0m |
AISG
DIN Male to AISG DIN Female |
I
|
AISG/M-AISG/F-50.0M |
50.0m |
AISG
DIN Male to AISG DIN Female |
J
|
AISG/M-AISG/F-60.0M |
60.0m |
AISG
DIN Male to AISG DIN Female |
K
|
AISG/M-AISG/F-70.0M |
70.0m |
AISG
DIN Male to AISG DIN Female |
L
|
AISG/M-AISG/F-80.0M |
80.0m |
AISG
DIN Male to AISG DIN Female |
M |
AISG/M-AISG/F-90.0M |
90.0m |
AISG
DIN Male to AISG DIN Female |
N
|
AISG/M-AISG/F-100.0M |
100.0m |
AISG
DIN Male to AISG DIN Female |
|
Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V
Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black
Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test
Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to
+158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test
Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test
Condition B
Ingress Protection Test Method IEC 60529:2001, IP67
Dimensions:
Length 1.0 m~100m
Diameter Over Jacket 8.0 mm
|
|
|
|
OVER MOLD
AISG to
AISG Cable |
